Mini E, 2010








 Mini E, 2010

The all-electric MINI E powered by a 150 kW (204 hp) electric motor fed by a high-performance rechargeable lithium-ion battery, transferring its power to the front wheels via a single-stage helical gearbox nearly without a sound and entirely free of emissions. Specially engineered for automobile use, the battery technology will have a range of more than 240 kilometers, or 150 miles. The MINI E  initially be made available to select private and corporate customers as part of a pilot project in the US states of California, New York and New Jersey. The possibility of offering the MINI E in Europe as well is currently being considered. The MINI E  give its world premiere at the Los Angeles Auto Show on November 19 and 20, 2008. The BMW Group will be the world's first manufacturer of premium automobiles to deploy a fleet of some 500 all-electric vehicles for private use in daily traffic.

Driven by electricity: reliably, affordably and free of emissions.
A full recharge draws a maximum of 28 kilowatt hours of electricity from the grid. Based on the car's range, a kilowatt hour translates into 5.4 miles. Besides the benefit of zero-emissions driving, the MINI E thus offers significant economic advantages over a vehicle powered by a conventional internal combustion engine as well.

The heavy-duty battery delivers its power to an electric motor, which transforms it into thrilling agility. Mounted transversely under the MINI E's bonnet, the drive train unleashes its full thrust from a dead standstill. This provides for the car's fascinating launch capability. The MINI E's intense driving experience is augmented by its dynamic deceleration potential, which is also directly coupled to the accelerator pedal. As soon as the driver releases the gas pedal, the electric motor acts as a generator. This results in braking force, and the power recovered from the kinetic energy is fed back to the battery. This interaction ensures extremely comfortable drives - especially at medium speed with constant, but marginal, variation. In city traffic, some 75 percent of all deceleration can be done without the brakes. Making substantial use of this energy recuperation feature extends the car's range by up to 20 percent.

The MINI E's electric drive train produces a peak torque of 220 Newton meters, delivering seamless acceleration to 100 km/h (62 mph) in 8.5 seconds. Top speed is electronically limited to 152 km/h (95 mph). Featuring a suspension system tuned to match its weight distribution, the MINI E sports the brand's hallmark agility and outstanding handling.

By introducing the MINI E, the BMW Group is underscoring the resolve with which it works towards reducing energy consumption and emissions in road traffic. The BMW Group is drawing on its unique technological expertise in the field of drive systems to develop a vehicle concept enabling zero emissions without renouncing the joy of driving. Putting some 500 cars on the road under real daily traffic conditions will make it possible to gain widely applicable hands-on experience. Evaluating these findings will generate valuable know-how, which will be factored into the engineering of mass-produced vehicles.

The BMW Group aims to start series production of all-electric vehicles over the medium term as part of its Number ONE strategy. The development of innovative concepts for mobility in big-city conurbations within the scope of "project i" has a similar thrust, as its objective also includes making use of an all-electric power train.

The energy storage unit: cutting-edge lithium-ion technology engineered specifically for use in the MINI.

The car  initially available as a two-seater. The space taken up by back-seat passengers in the series model has been reserved for the lithium-ion battery. When in use in the zero-emissions MINI, the battery unit combines high output with ample storage capacity and a small footprint with power ratios that are unrivalled in this field of application so far. The lithium-ion storage unit will have a maximum capacity of 35 kilowatt hours (kWh) and transmit energy to the electric motor as direct current at a nominal 380 volts. The rechargeable battery is made up of 5,088 cells grouped into 48 modules. These modules are packaged into three battery elements that are compactly arranged inside the MINI E.

The energy storage unit's basic components are based on the technological principle that has proven itself in practice in power supplies for mobile phones and portable computers. The MINI E's lithium-ion battery can be plugged into all standard power outlets. Its charge time is strongly dependent on the voltage and amperage of the electricity flowing through the grid. In the USA, users can recharge a battery that has been completely drained within a very short period of time using a wallbox that will ship with every MINI E. The wallbox will be installed in the customer's garage, enable higher amperage, and thus provide for extremely short charging times. Wallboxes fully recharge batteries after a mere two-and-a-half hours.

Signature MINI agility in a new guise.

Weighing in at 1,465 kilograms (3.230 lbs), the MINI E has an even weight distribution. Minor modifications made to the suspension ensure safe handling at all times. The Dynamic Stability Control (DSC) system has been adapted to this model's specific wheel loads.

The MINI E's brake system comes with a newly developed electric underpressure pump. Its Electrical Power Assisted Steering (EPS) is the same as the one used in mass-produced MINIs. Both brake and steering assistance react to driving conditions and are thus extremely efficient. Even the air conditioning's electrical compressor only operates if desired or necessary.

Special charging station and full service for every MINI E.

The cars will change hands based on a one-year lease with an extension option. Monthly lease installments will cover any required technical service including all necessary maintenance and the replacement of wearing parts. At the end of the lease, all of the automobiles belonging to the project will be returned to the BMW Group's engineering fleet where they will be subjected to comparative tests.

The MINI E's lithium-ion battery can be charged using a wallbox provided to MINI customers. Only lockable garages or similar buildings will qualify as homebases and power stations for the MINI E.

Design: unmistakably MINI, undoubtedly new.

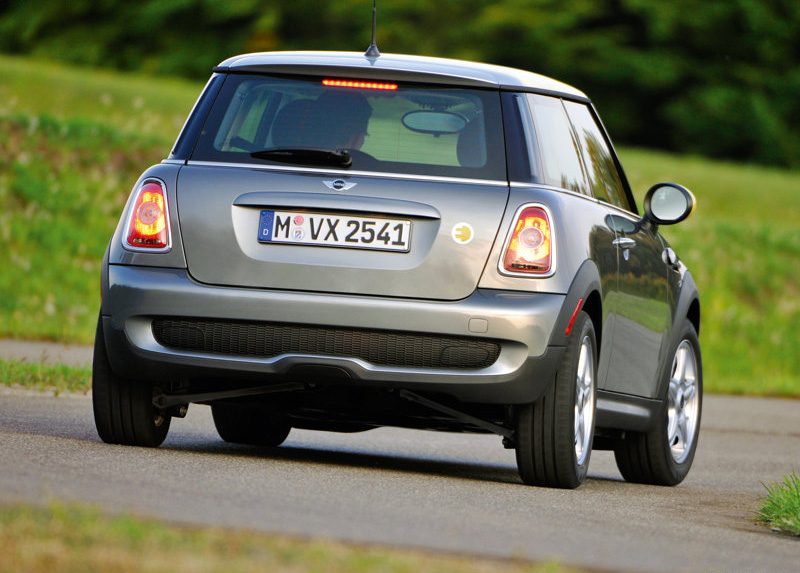

At first glance, the MINI E is obviously an iteration of the brand. But its design, which is the blueprint for the zero-emissions two-seater, has been complemented by a number of visual cues that point to its revolutionary drive concept. All of the units produced for the pilot project will have the same paintwork and bear a serial number on their front fenders.

The MINI E's coachwork sports an exclusive combination of metallic Dark Silver on all panels but the roof, which is clad in Pure Silver. What distinguishes the zero-emissions MINI is a specially designed logo in Interchange Yellow, depicting a stylized power plug in the shape of an "E" set against the silver backdrop. It has been applied to the roof, in smaller dimensions to the front and back, to the charger port lid, the dashboard trim, and - combined with the MINI logo - to the door jamb, in slightly modified form. The color of the roof edges, mirror housings, interior style cues and seat seams will match the logo's yellow tone as well.

Moreover, the central gauge and the battery level indicator behind the wheel of the MINI E, which replaces the MINI's rev counter, feature yellow lettering against a dark grey background. The battery level is displayed in percentage figures. The central gauge includes an LED display indicating power consumption in red and power recuperation in green.

MINI E customers will be part of a pioneering mission.
A 500-unit, limited-production MINI E series will be manufactured through the end of 2008. The project will thus attain an order of magnitude that clearly exceeds the size of currently comparable test series. Putting the MINI E on the road on a daily basis will be a pioneering feat to which both the drivers and engineers of the first zero-emissions MINI will contribute as a team.

MINI E customers will join forces with BMW Group experts to assist in the project's scientific evaluation. MINI E engineers accord high importance to staying in touch with the drivers on a regular basis, as this will help them analyze driver behavior besides vehicle characteristics in order to gain the most accurate and realistic picture of the demands placed on a vehicle with a purely electrical drive in the select usage areas.

Maintenance by qualified specialists.
The electric drive's high-voltage technology requires that maintenance work be done by qualified personnel using special tools that are not included in MINI service partners' standard toolboxes. In light of this, a service base will be set up on both coasts, staffed by service engineers that are specially trained to perform maintenance and repair work on the MINI E's electrical components. In the event of drive malfunction, these experts will provide professional support at the customer's local MINI dealer or the service base's specially equipped workshop. Technical inspections will take place after 3,000 miles (just under 5,000 kilometers) and at least after six months.

Production in Oxford and Munich.
The MINI E has already gone through the major phases of product development for mass-produced vehicles and passed numerous crash tests on the way. Aspects investigated besides passenger protection were the impact of collision forces on the lithium-ion battery and finding a non-hazardous location for it in the car. The MINI E's energy storage unit emerged completely unscathed from all of the crash tests mandated by US standards, which are especially high.

Production of the approximately 500 cars will take place at the company's Oxford and Munich sites and is scheduled for completion before the end of 2008. MINI's UK plant will be responsible for manufacturing the entire vehicle with the exception of the drive components and the lithium-ion battery, with the brand's series models rolling off its assembly lines concurrently. The units will then be transferred to a specially equipped manufacturing complex situated on BMW plant premises where the electric motor, battery units, performance electronics and transmission will be integrated.

Technical Specifications
    Doors: 3
    Seats: 2
    Length: 3.714 mm (146.2")
    Width: 1.683 mm (66.3")
    Height: 1.407 mm (55.4")
    Wheelbase: 2,467 mm (97.1")
    Track
        front: 1,453 mm (57.2")
        rear: 1,461 mm (57.5")
    Turning circle: 10.7 m (35.1 feet)
    Curb weight: 1.465 kg (3.230 lbs)
    Payload: 195 kg (430 lbs)
    Gross vehicle weight rating: 1,660 kg (3,656 lbs)
    Cargo space (DIN): 60 l
    Engine
        Type: Electric motor
        Motor type: Asynchronous motor
        Power output: 204 hp (150 kw)
        Torque: 220 Nm (from idle)
        Max. RPM (cut off): 12,500 rpm
    Electrical System
        Battery capacity: 35kWh, approx. 28kWh of which useable
        Battery weight: 260 kg (573 lbs)
        Charging time
            23.6 h @ 110 V/12 A (1.3 kW)
            4.4h @ 240 V/32 A (7.0 kw)
            2.9h @ 240V/48 A (10.6 kW)
        Battery design: 53 cells connected in parallel constitute a unit, 2 units connected in series constitute a module, 48 modules connected in series constitute the battery; 5,088 individual cells in total
        Battery cooling: Air cooling via temperature-, load- and speed-sensitive fans
        Battery location: Extends rearward from the heel plate; replaces the rear seat bench
        Peak current: Short bursts of up to 900A
    Running Gear
        Front wheel suspension: Single-joint McPherson spring strut axle with anti-dive control
        Rear wheel suspension: Longitudinal link with centrally mounted control arms, z axis
        Front brakes: Vented disc, Diameter: 294 mm (11.6")
        Rear brakes: Disc, Diameter: 259 mm (10.2")
        Road stability systems: DSC adapted to modified curb weight and wheel load (always on), low-friction recuperation control via DSC, ELUP (electronic underpressure pump) brake boost
        Steering: Rack and pinion with electronic power steering (EPS)
        Total steering transmission ratio: 14.1:1
        Type of transmission: Single-stage helical gearbox, derived from the Cooper S helical gearbox
        Axle load distribution
            front: 750 kg (1,651 lbs)
            rear: 715 kg (1,575 lbs)
        Tires: All-season Runflat 16"
    Performance Ratings
        Power-to-weight ratio (DIN): 9.76 kg/kW
        Acceleration 0-100 km/h (0-62 mph): 8.5 s
        Top speed: 152 km/h (95 mph)
        Range (FTP 72): 240 km (150 miles)
        Consumption (FTP 72): 0.12kWh/km (0.19 kWh/mls)
        CO2 Emission: 0 g/km
